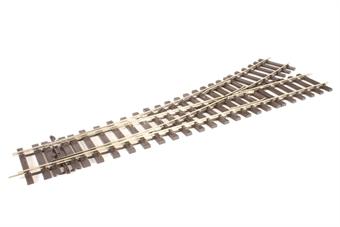

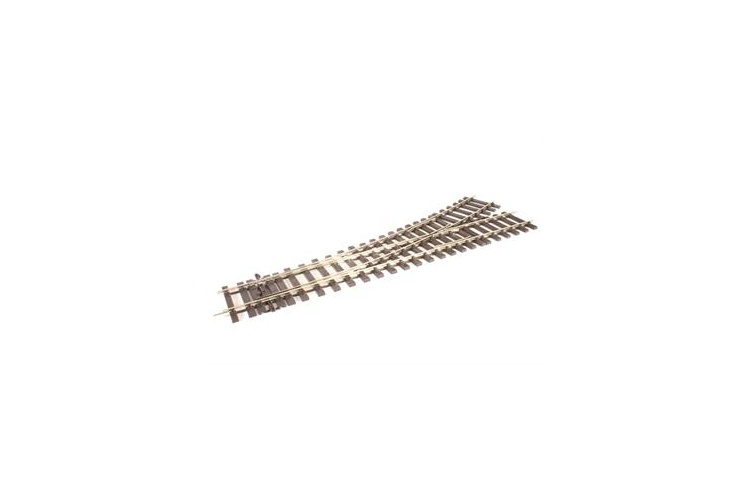

Peco ST-U751 Bull Head Setrack O Gauge Code 124 Unifrog No.2 Radius Left Hand Turnout

Peco ST-U751 Bull Head Setrack O Gauge Code 124 Unifrog No.2 Radius Left Hand Turnout

Specification:

  • Length: 394mm
  • Frog Angle: 22.5 Degrees
  • Radius: 1028mm

These turnouts match the ST-700 Standard Straight and the ST-725 Standard Curve so that it is easy to put together your layout.

Peco Setrack Bullhead 0 Gauge track makes it possible have somewhere to run trains without having to build or find room for a fixed layout.

With Setrack you can lay out your trackwork indoors on the floor or out on the patio in any configuration you choose and pack it away again afterwards. Compatible with and made to the same high standard of detail and realism as the Bullhead Streamline range, it can also be incorporated into a Streamline layout without problems.

Made with solid nickel silver rail to the classic bullhead section and check rails are also machined from solid rail. The SL-713 0 Gauge Bullhead to Flat Bottom Transition Track makes it easy to also incorporate the Setrack range into a layout using Flat Bottom track.

Unifrog: For the first time in 0 gauge, the turnouts are wired in the new Unifrog configuration. Both routes through the turnout are live at all times, which is ideal for DCC use, and there is no need for any additional wiring or fitting insulating rail joiners. The frog tip is normally ‘dead’, which poses no problem for all but the smallest locos, but it is conductive and has a trailing wire attached, allowing it to be energised using a PL-13 or PL-15 accessory switch attached to a PL-10 point motor, or a PL-33 micro-switch in a PL-19 housing (which clips directly to the turnout) activated directly by the movement of the tiebar. Matching the geometry of the existing Setrack straight and curve: 22.5° exit angle, 15.5” (393.7mm) length, 40.5” (1028.7mm) radius, Bullhead rail.



Specifications

O Gauge
Peco Setrack Bullhead O Gauge Code 124
New
14+
Brand: Peco
Peco
RRP: £ 66.50
Our price: £ 56.52
1 item in stock
