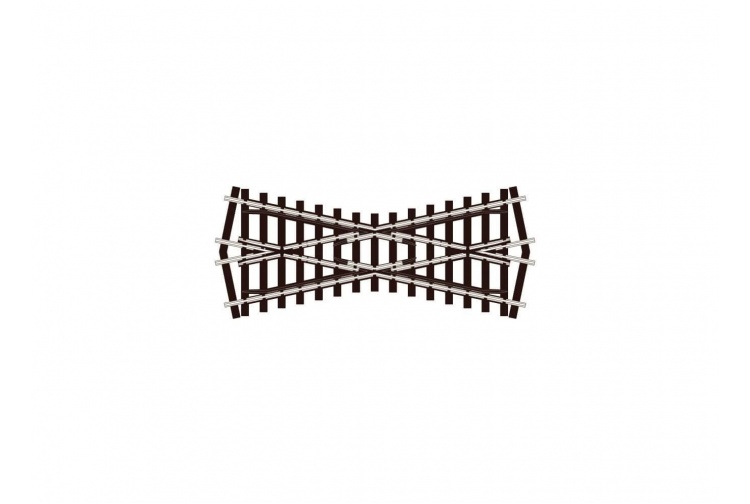

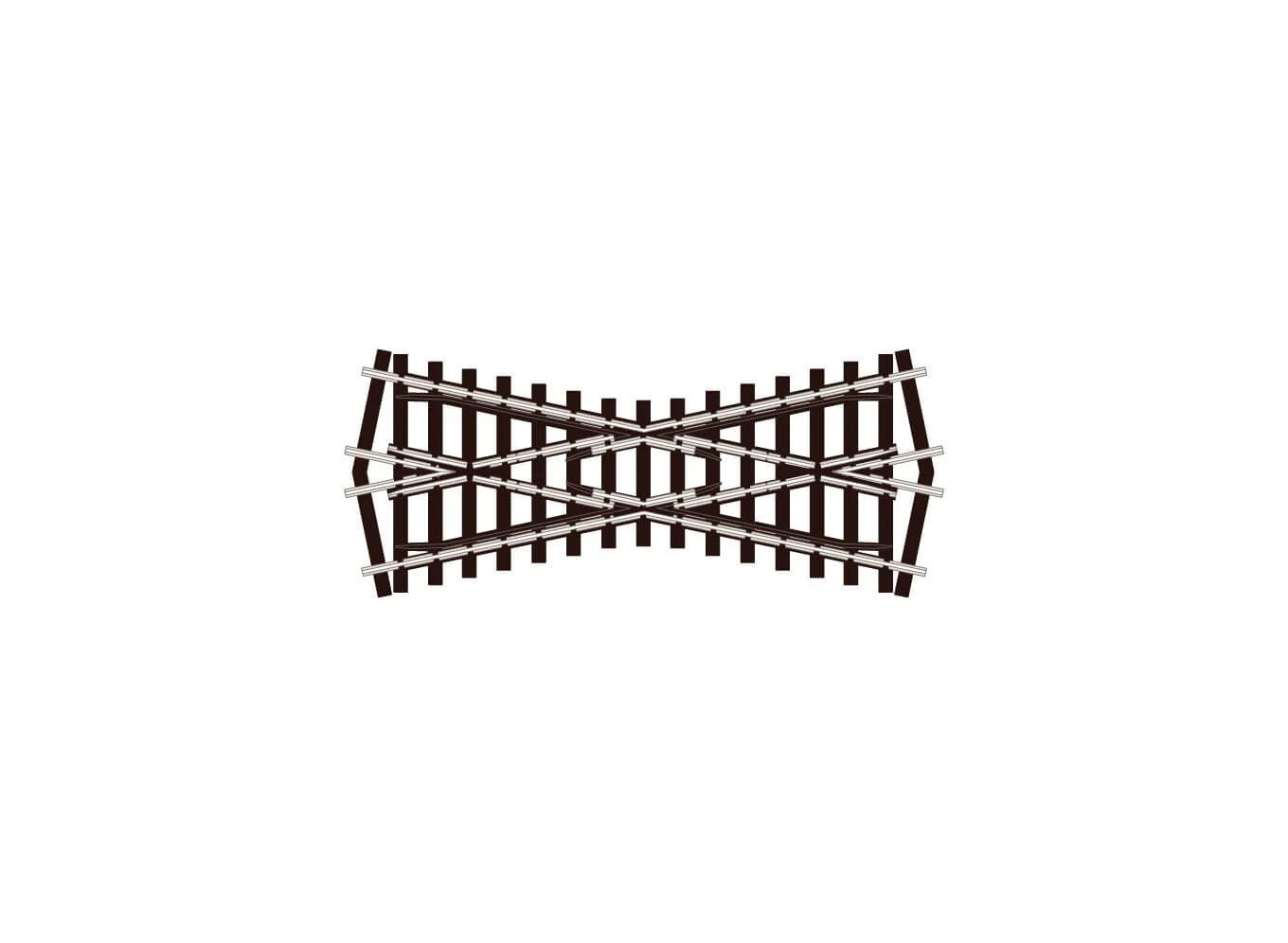

Peco SL-193 Streamline Crossing Short

Peco SL-193 Streamline Crossing Short.

The short crossing is double the angle of other track components in this range. This enables it to be used to form scissors formations in conjunction with them. Also, a compact double junction can be formed by using it with 2 short Y turnouts SL-E197 (Overall length 275mm).

Peco Streamline Code 75 track meets the standards of enthusiasts who prefer to run trains on scale height rail. Today most manufacturers' wheels are suitable for use on Code 75 track but some vintage models may have flanges which are too deep to clear the rail fixings. Code 75 can be easily combined with code 100 track by using the SL-113 Transition Track.

The wide range of turnouts and crossings in this series includes every type, and the geometry of this range has been cleverly designed to make it easy to build convenient, complex and aesthetically pleasing formations using combinations of small, medium and large radius turnouts and crossings. Layout plans suggestions can be found in our publications ‘Track Plans for Layouts to Suit all Locations’ (Ref PM-202), ‘60 Plans for Small Railways’ (Ref no PB-3), and ‘Track Plans for Various Locations’ (Ref no PB-66).

For more details on Electrofrog turnouts, see our Wiring the Layout publications numbers 4 and 21.

This crossing is 127mm (length) and has a frog angle of 24 degrees.

It can be used with the Peco SL-110 Conducting Rail Joiners, Peco SL-111 Insulated Rail Joiners and the Peco SL-14 Track Fixing Pins.
