Gaugemaster GM270 2 Aspect Lineside Signal N Gauge

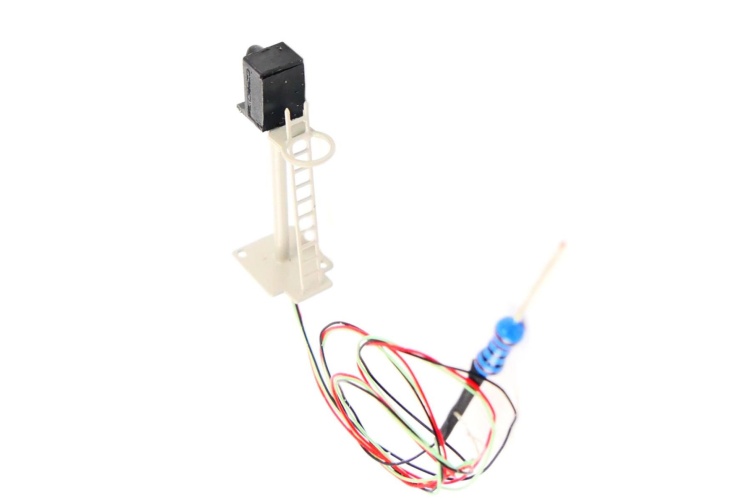

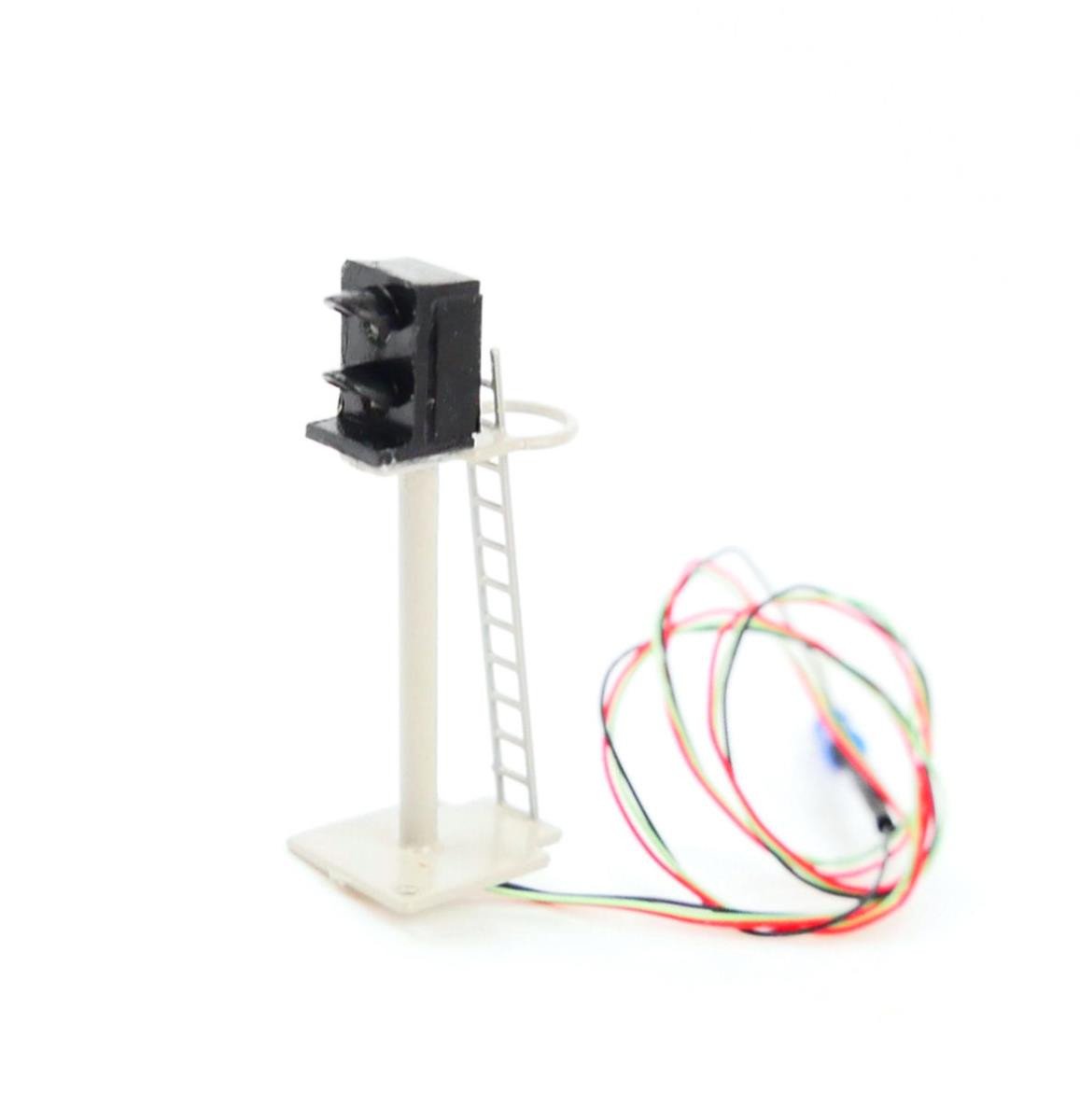

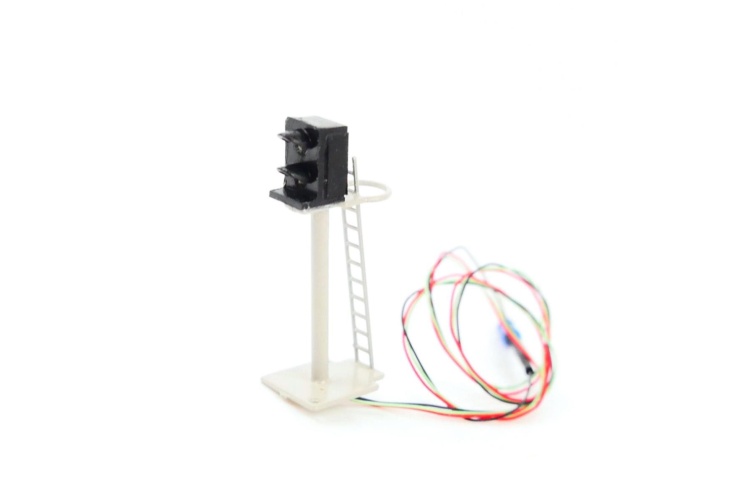

Manufactured in the UK, these N gauge signals feature injection moulded plastic heads along with brass poles and nickel silver base.  They are pre painted and the red, green and amber specially domed LEDs are as prototypical as possible. They have pre-fitted heat resistant and durable multi-core teflon wire with pre-fitted resistors for easy wiring. Its 170mm length wire is suitable for most installations and a 12v DC operation is recommended.

The signal must be used with the attached resistor.  This must be connected to the supply - negative and the colour wires to the supply + positive.  Operating without the resistor will cause permanent damage.

N gauge signal dimensions: H 25mm x W 7mm x D 10mm

A 12v DC supply is recommended.
