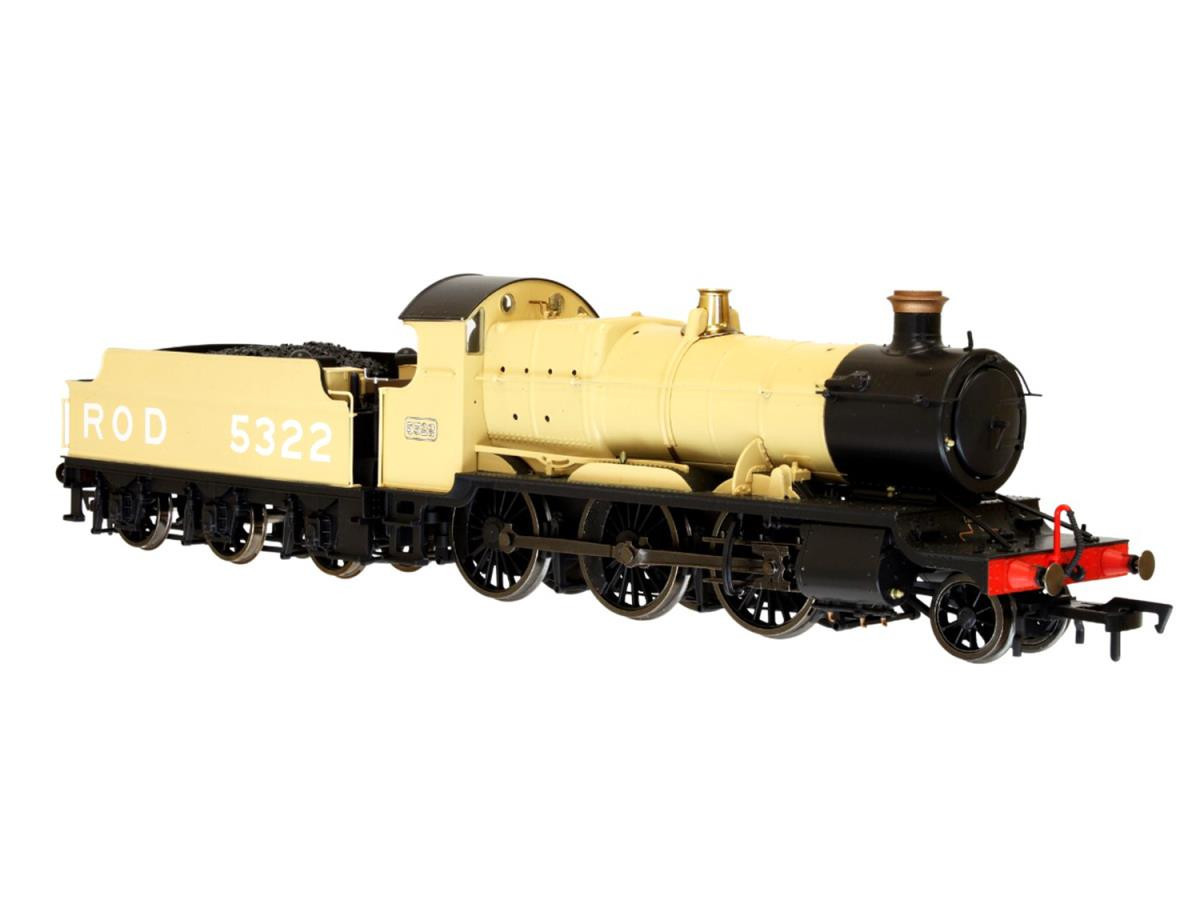

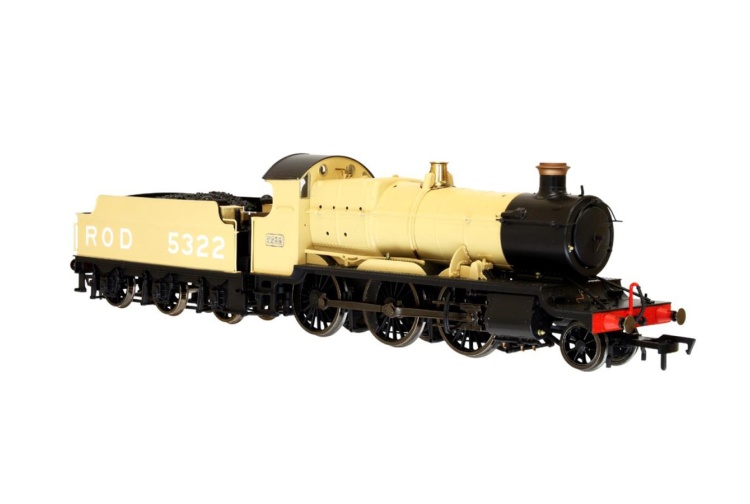

Dapol 4S-043-008D 2-6-0 Mogul 5322 Khaki GWR 43xx OO Gauge Steam Locomotive, DCC Fitted

Lovely looking steam locomotive boasting a wealth of benefits including:

A die-cast compensated chassis
New cab with higher and shorter roof
Porthole cab windows above the firebox where appropriate
Detailed cab interior with lever reverse
Full profile cylinder no cut away
New motion bracket and boiler support
New straight Chimney where appropriate
Original front Pony spring housing where appropriate
New footplate with longer middle splasher on the right hand side
Brass plated safety valve casing
The front Bogie is also sprung and operates on a cam so the model will negotiate R2 curves with ease
Smooth sided tender where appropriate
Churchward tapered and Collet straight shank buffers and main footplate with prototypical overhang

Technical Specifications
A slide in PCB offers simple ‘tool-free’ installation of a NEXT-18 DCC decoder and a ’no-solder’ speaker connection. This board slides through the smoke box door and connects directly to the locomotive mother board.
The tender to locomotive drawbar includes reliable electrical connections moulded within the close-coupling push-fit coupling. This eliminates wired plugs and unreliable wiper style connections.
A total of 12 wheels split between the locomotive and tender have electrical pick-up, this is enhanced by the sprung centre driving wheel.
A sugar cube is mountable on the slide out PCB board and a Base Reflex speaker can be housed in the tender. An audio frequency filter is integrated within the main locomotive PCB to ensure each speaker responds within it’s ideal frequency range.
Improved firebox glow
