Legacy Models LML-VPGGR Skyline 4mm 6 Gas Lamps and 2 Wall Lamps In Green Value Pack

Legacy Models LML-VPGGR Skyline 6 Gas Lamps and 2 Wall Lamps

Value Pack of super-high quality LED 4mm scale gas lamps in Green (2x wall lamps, 6x street/platform lamps)

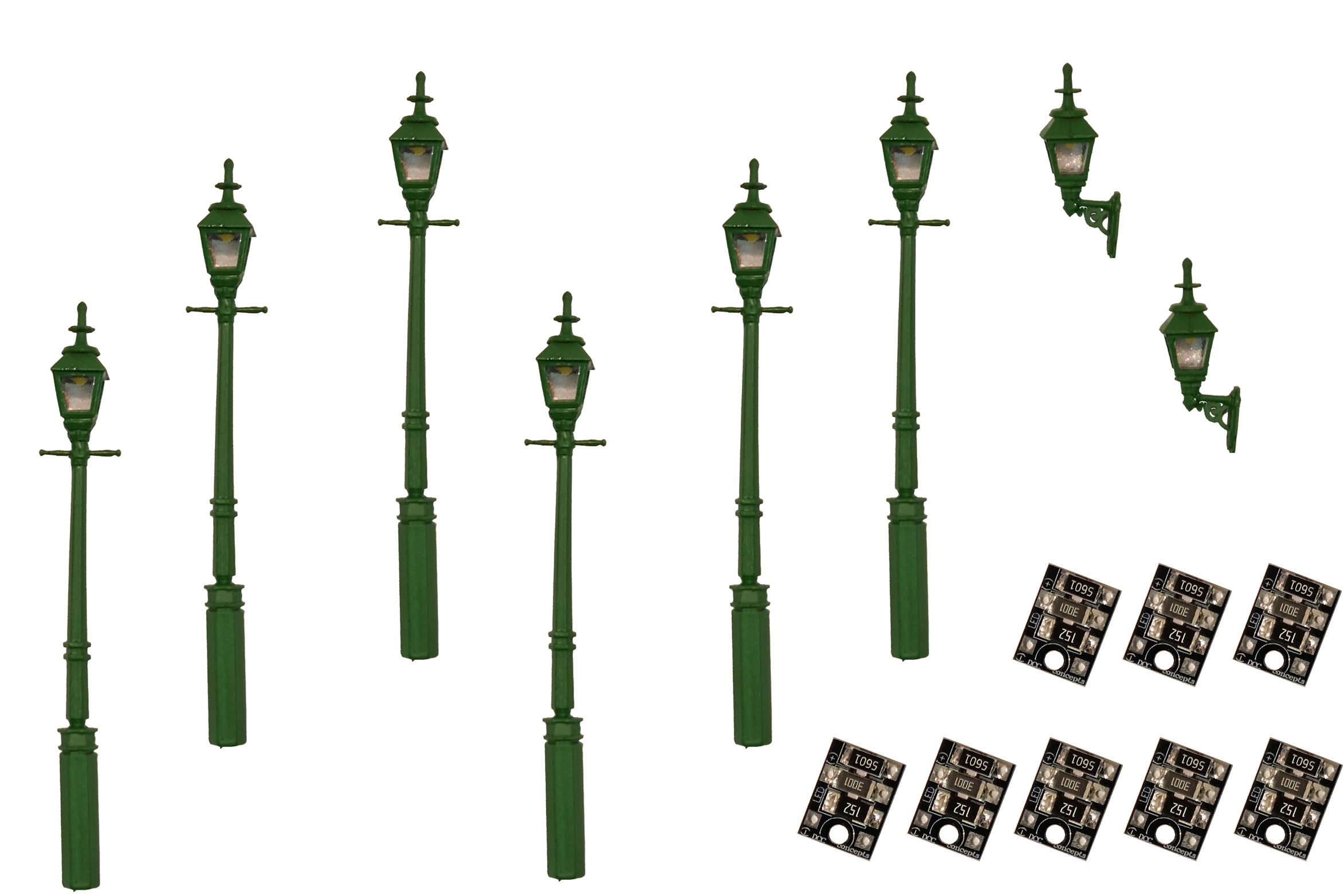

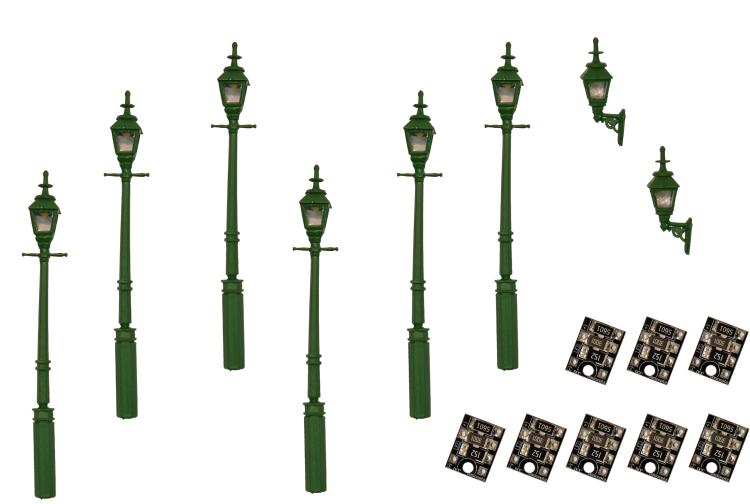

Pack Contents
6x 4mm scale street/platform lamps with 200mm connection wires
2x 4mm scale wall lamps with 200mm connection wires
8x Resistor boards – suitable for connection to regulated DC power 6-12V

Installation Advice
Drill the mounting hole using a 2mm drill. Carefully thread the fine wires into the hole, then insert the lamp mounting tube.
If using the extension base, use a 5.5mm drill and insert it to your chosen depth or pre-cut it to length and pre-drill to 2mm to allow you to use the added 2mm tube extension that is provided in the pack.
Wall lamps – using a very small drill, drill the building wall to allow insertion of the fine wires. Use glue to fix the lamp to the building.
The longer of the 2 wires is the + lead. Connect your power supply to the resistor board and then try the lamp with each of the resistor values to select your preferred light level.
Alternatively, if a different level is wanted, you may also use any other value 1/4 watt resistor as long as it is larger than 1k Ohms.
Connect several lamps (up to 6) to one resistor board if you wish.
You can also connect Legacy Skyline Lamps to an Alpha Mimic DCC control board if you wish. Follow the instructions supplied with the Alpha Mimic Building Lighting for this type of installation.
