Legacy Models LML-SWBN Skyline 4mm Scale Swan-Neck Wall Lamps - Brown Pack of 2
Super-high quality LED 4mm scale swan-neck wall lamps in Brown (2 pack)

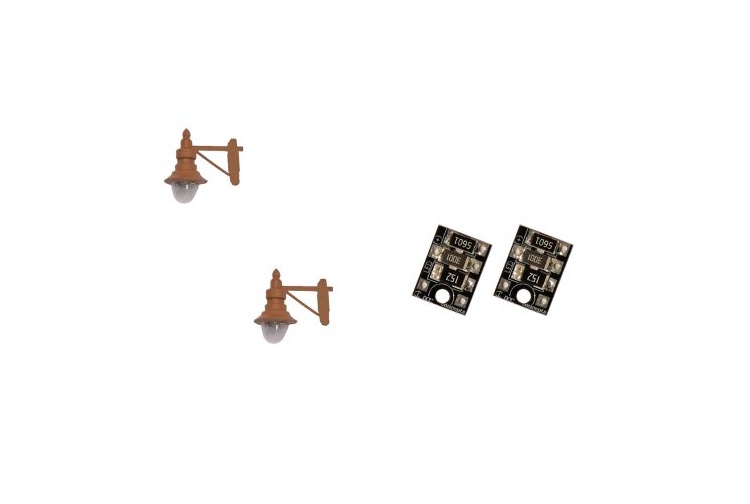

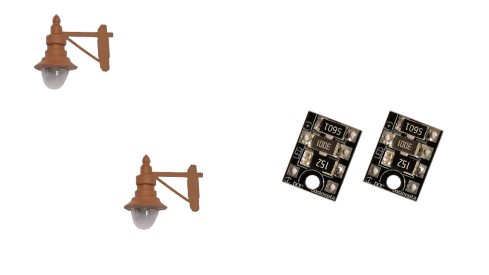

Pack Contents
2x 4mm scale wall lamps with 200mm connection wires
2x Resistor boards – suitable for connection to regulated DC power 6-12V
Installation Advice
Using a very small drill, drill the building wall to allow insertion of the fine wires. Use glue to fix the lamp to the building.
The longer of the 2 wires is the + lead. Connect your power supply to the resistor board and then try the lamp with each of the resistor values to select your preferred light level.
Alternatively, if a different level is wanted, you may also use any other value 1/4 watt resistor as long as it is larger than 1k Ohms.
Connect several lamps (up to 6) to one resistor board if you wish.
