Legacy Models LML-SSBK Skyline 4mm Scale Swan-Neck Street/Platform Lamps - Black (3 pack)
Super-high quality LED 4mm scale swan-neck street/platform lamps in Black (3 pack)

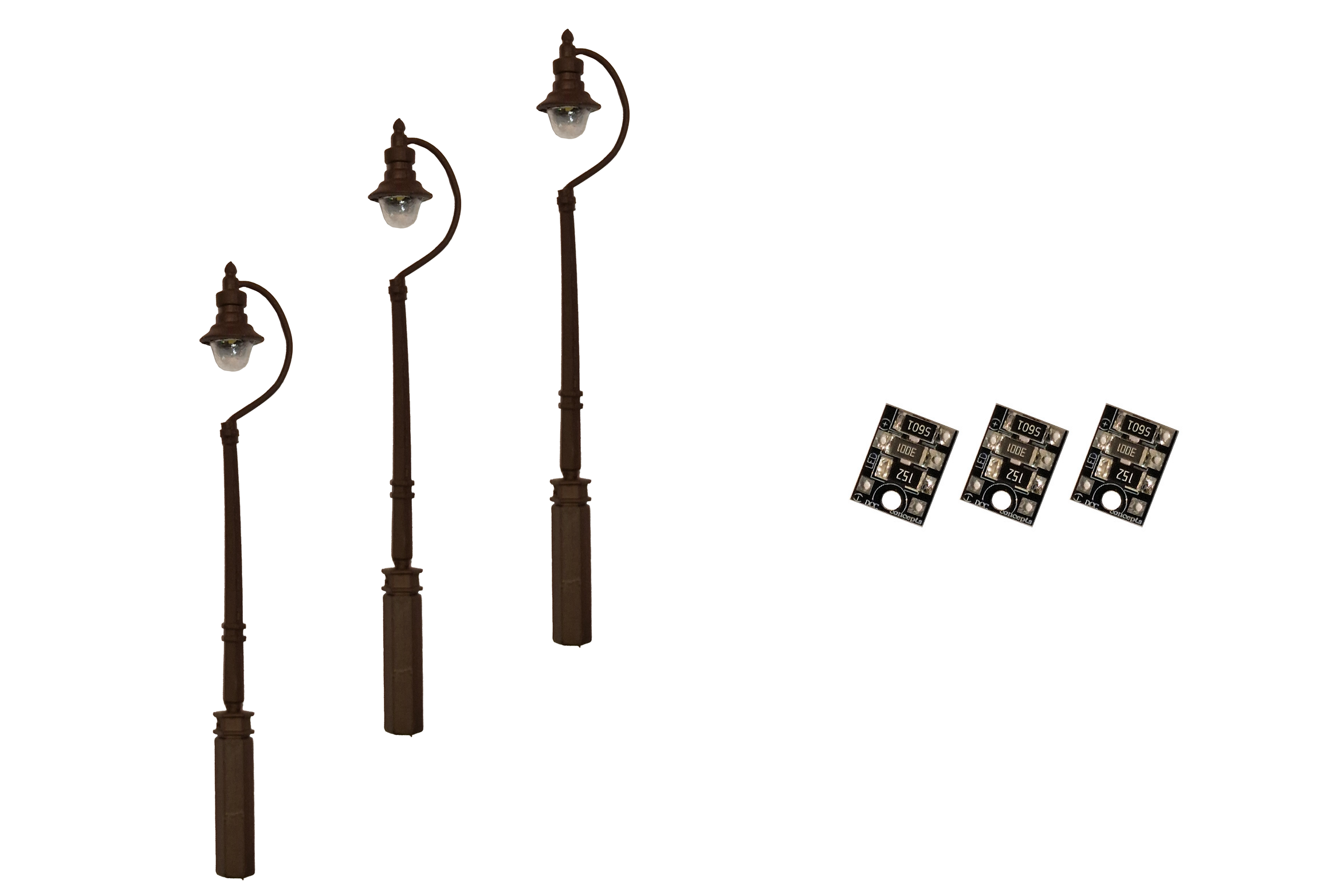

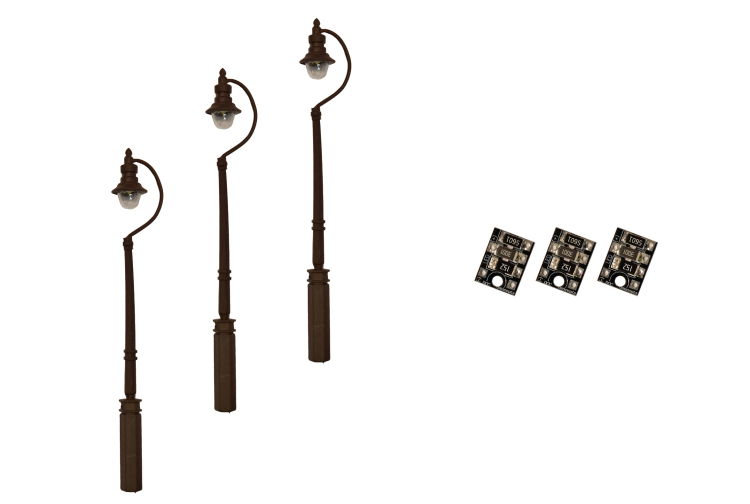

Pack Contents
3x 4mm scale street/platform lamps with 200mm connection wires
3x Resistor boards – suitable for connection to regulated DC power 6-12V
Installation Advice
Drill the mounting hole using a 2mm drill. Carefully thread the fine wires into the hole, then insert the lamp mounting tube.
If using the extension base, use a 5.5mm drill and insert it to your chosen depth or pre-cut it to length and pre-drill to 2mm to allow you to use the added 2mm tube extension that is provided in the pack.
The longer of the 2 wires is the + lead. Connect your power supply to the resistor board and then try the lamp with each of the resistor values to select your preferred light level.
Alternatively, if a different level is wanted, you may also use any other value 1/4 watt resistor as long as it is larger than 1k Ohms.
Connect several lamps (up to 6) to one resistor board if you wish.
