Gaugemaster DCC92 Ruby Series 2 Function Small DCC Decoder 8 Pin

Gaugemaster DCC92 Ruby Series 2 Function Small DCC Decoder 8 Pin.

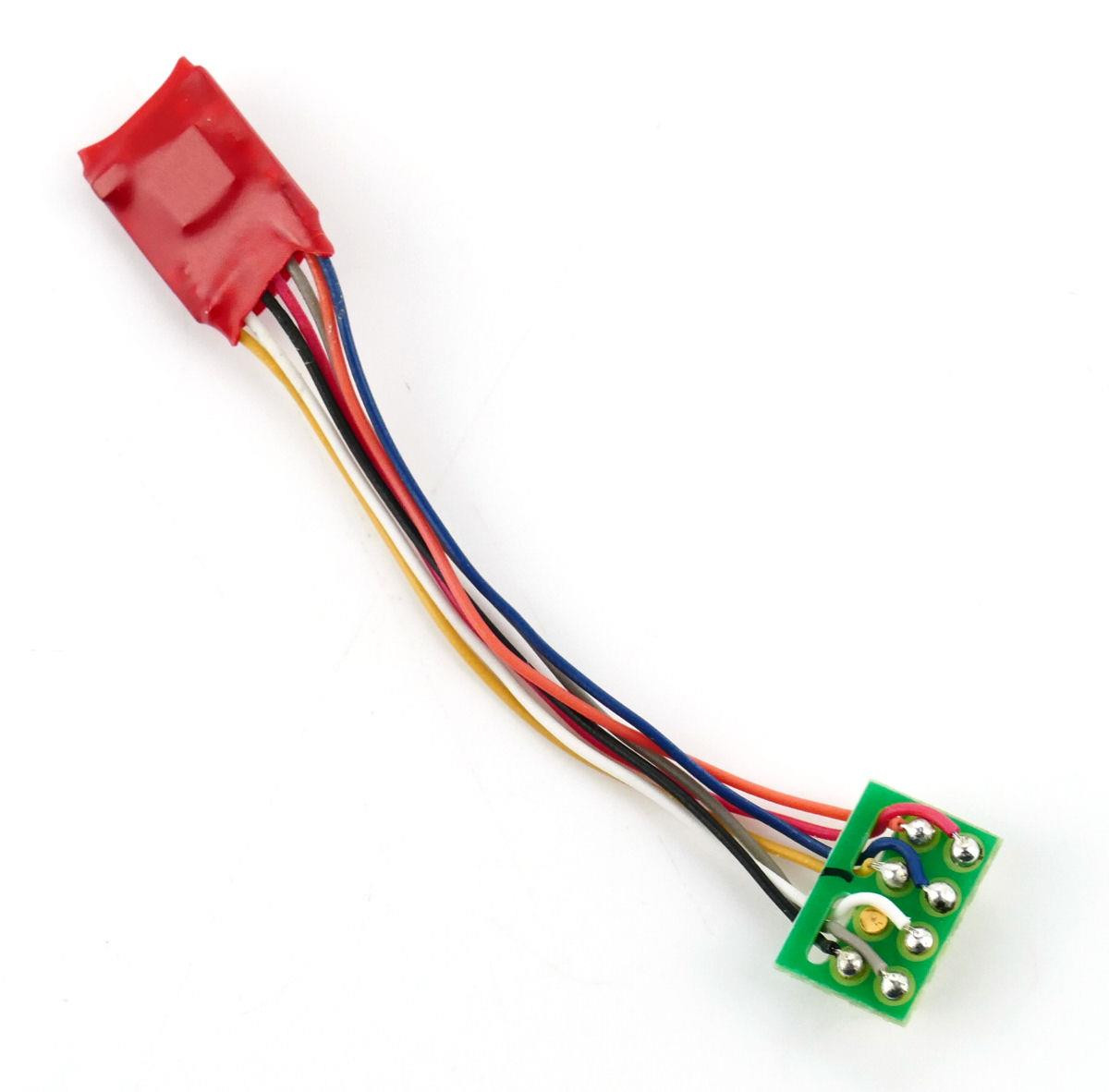

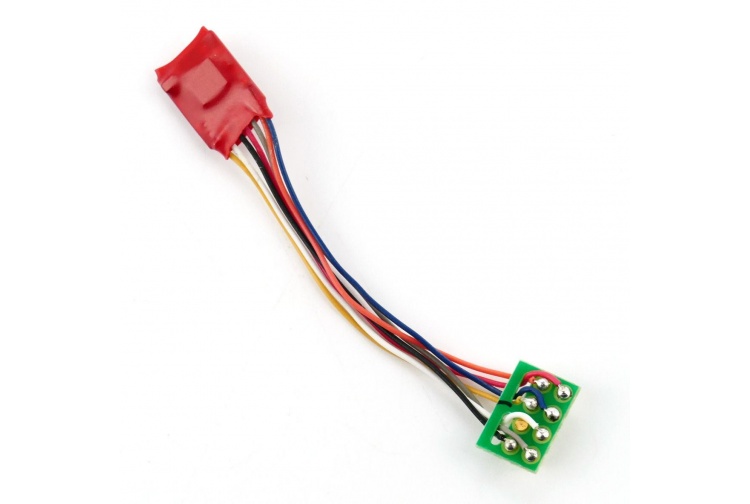

The DCC92 is a 2 function, 8 pin decoder with a fitted 45mm harness between the pins and the decoder. An ideal decoder for retrofitting into non DCC Ready locomotives.

It features 2 digit and 4 digit addressing, 14, 28 or 128 speed steps, smooth operation, constant brightness lighting, direct mode programming, motor isolation protection and advanced consisting.

The decoder has a current rating of 0.5 amps and a maximum motor current rating of between 1.0 amps and 1.5 amps.

Specifications
No. of Pins 8
No. of Functions 2
Speed Steps 14, 28 or 128
Current Rating 0.5A
Motor Current Rating 1.0A - 1.5A Max

Measurements
Length 12mm
Width 10mm
Thickness 3mm
Harness Length 45mm
