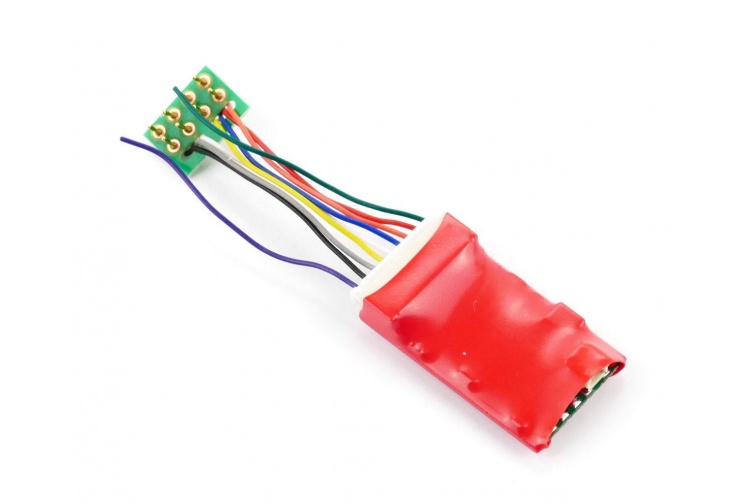

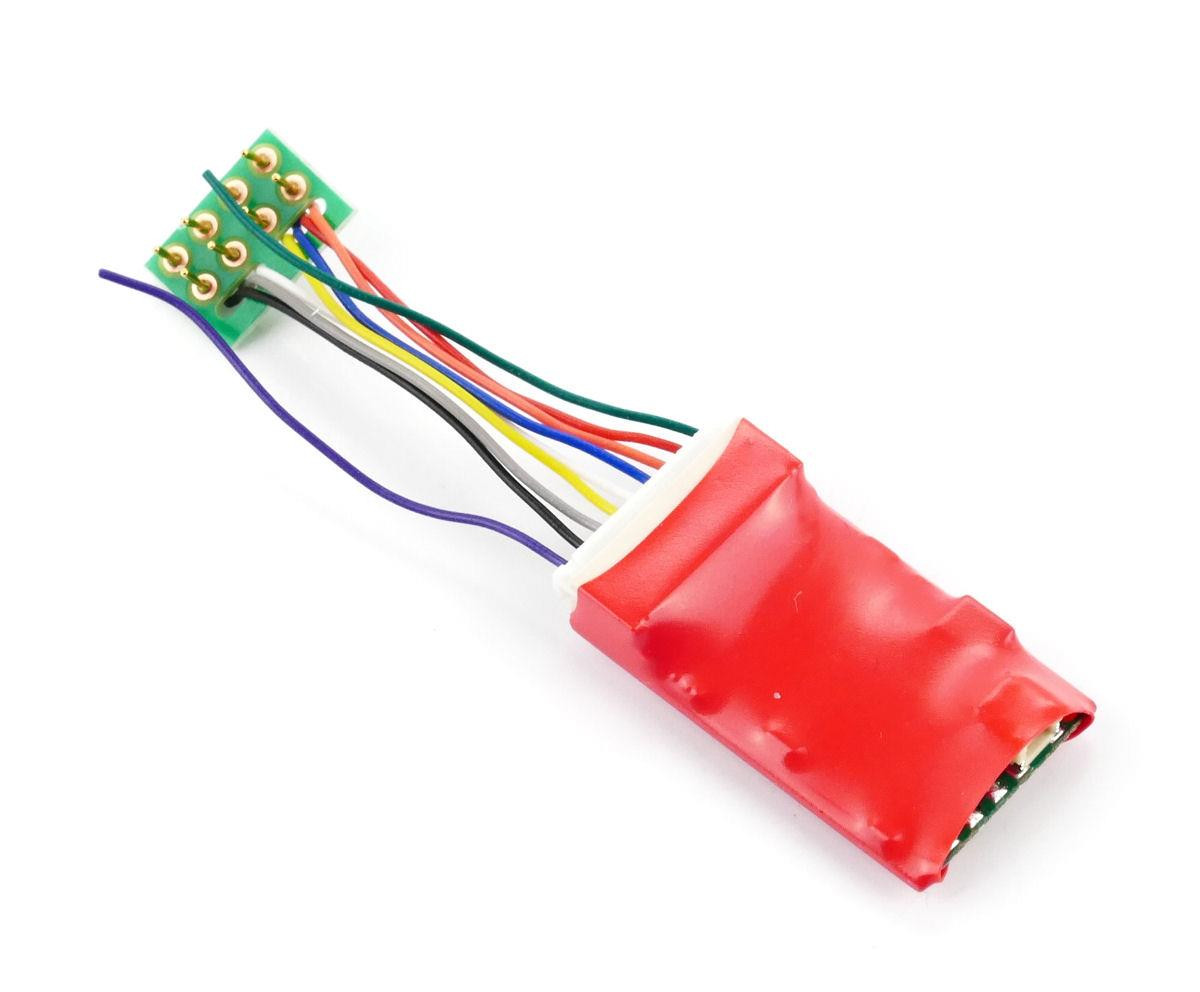

The DCC90 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.
Features:
2 Digit and 4 Digit Addressing
14, 28 or 128 Speed Steps
Smooth Operation
Constant Brightness Lighting
Direct Mode Programming
Motor Isolation Protection
Advanced Consisting
Socket to Add PowerPal
No. of Pins 8
No. of Functions 6
Speed Steps 14, 28 or 128
Current Rating 0.5A
Motor Current Rating 1.5A - 2.0A Max
Measurements
Length 27mm
Width 17mm
Thickness 7mm
Harness Length 25mm
