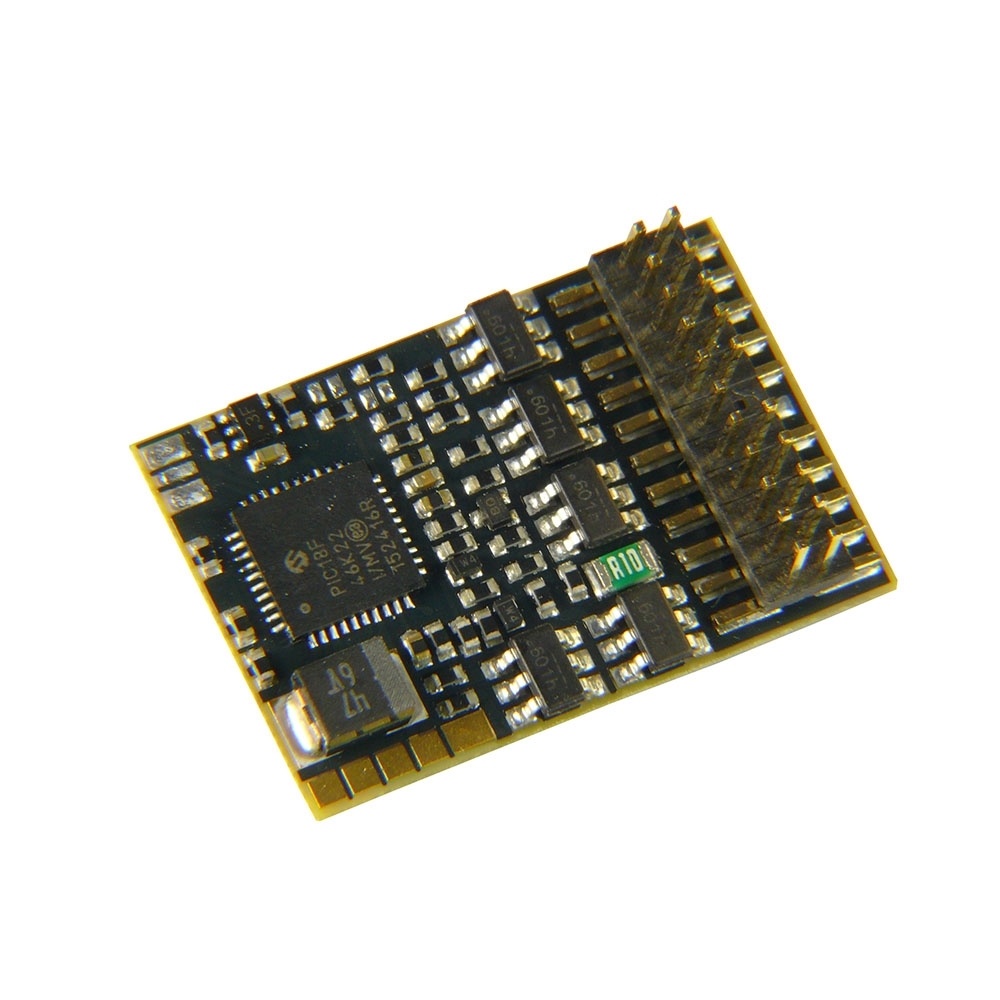

A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket.

Highlights include:
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
11 function outputs (9 powered and 2 logic level)
1.2A continuous load
Suitable for models equipped with DC motors (including coreless motors)
Brake Button function for realistic control of braking (operates on F2)

Operating Modes
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function

14, 28 and 128 speed steps
Short and Long addresses
Motor Control Features
Suitable for models equipped with DC motors (including coreless motors)
1.2A continuous load
Variable pulse width frequency motor regulation (up to 40kHz)
Motor output overload protection; Back EMF (de-selectable)

Function Outputs
9 powered-function outputs with overload protection
800mA load per output
800mA total load of all function outputs
2 additional logic level outputs
Shunting speed and momentum key selectable

Dimensions
22mm x 15mm x 3.5mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

Capacitor connections

Upgradable firmware

This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX633P22
