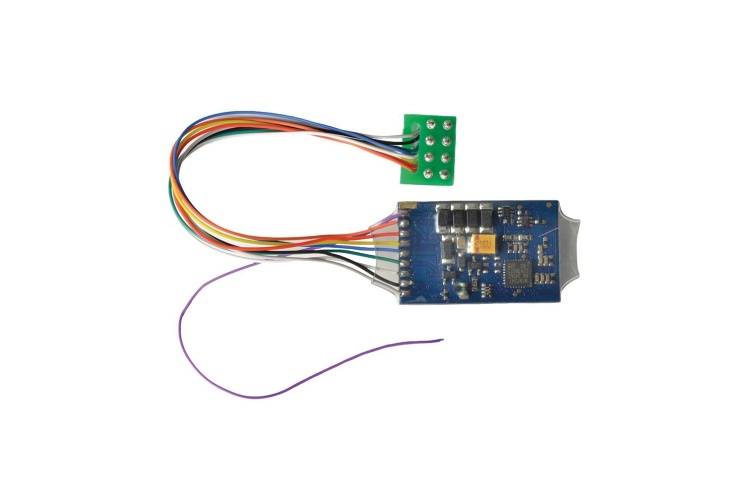

Bachmann 36-566A 8 Pin DCC Loco Decoder - with Brake Button Function

8 Pin (NEM652) DCC Decoder suitable for models fitted with an 8 Pin DCC decoder socket.

Benefits from dual-mode DCC/DC decoder with back EMF function, 4 powered function outputs and a 0.9A continuous load
RailComPlus® for automatic registration when used with selected DCC systems
Suitable for models equipped with DC motors (including coreless motors)

Operating Modes:
NMRA/DCC with 14, 28 and 128 speed steps
Short and Long addresses
DCC and DC operation (DC operation is de-selectable)
Automatic recognition of operational mode and DCC speed step selection
Supports Lenz® LG 100 braking sections
Supports ABC braking sections

Motor Control Features:
Suitable for models equipped with DC motors (including coreless motors)
0.9A continuous load
Motor regulation with pulse width frequency from 10kHz to 50kHz
Motor output overload protection; Back EMF (de-selectable)

Function Outputs:
4 powered-function outputs with overload protection
250mA load per output
500mA total load of all function outputs
Shunting speed and momentum key selectable
Brake Button function for realistic control of braking (operates on F2)

Dimensions:
25.5mm x 15.5mm x 4.5mm (+ wiring harness)

Default Address:
Address 3

Programming:
DCC Service Mode & DCC PoM (Programming on Main)

Additional Features:
RailCom® Feedback system
RailComPlus® automatic Registration
