Gaugemaster DCC07 Prodigy Advance Digital Control System with Wifi

Can be controlled via smartphone or tablet

PRODIGY ADVANCE² consists of three elements. The POWER PACK transforms the power from your mains socket ready for the Base Unit. The BASE UNIT is the brains behind the operation. It contains all the technology you need to send DCC commands to your trains and accessories. However, short of turning the power on and off, you'll find your closest companion is the Walkaround controller which plugs straight into the Base Unit.

The WALKAROUND is a hand-held controller that you use to send your commands to the Base Unit, which then sends them on to the relevant decoder on your layout. You control the speed and direction of your trains from here. One of the key features of DCC operation is that each of your locomotives has a numeric address which you select as and when you want to run that locomotive.

DCC allows you to run it anywhere on your railway at the same time as other trains are moving as well. You can operate points (individually or route set) and signals from the Walkaround. You can use it to programme your decoders to replicate the running characteristics of your locomotives, or even introduce a speed clock that allows you to run a 24 hour timetable within one operating session.

The possibilities are almost endless with DCC and with locomotives becoming available with factory-fitted decoders as standard, we are entering an exciting new era. Of course, you can also retro-fit your older locomotives with decoders if you wish.

The handset in this pack is fitted with a clear and bright blue backlit display, ideal for users operating a railway in less than ideal lighting conditions.

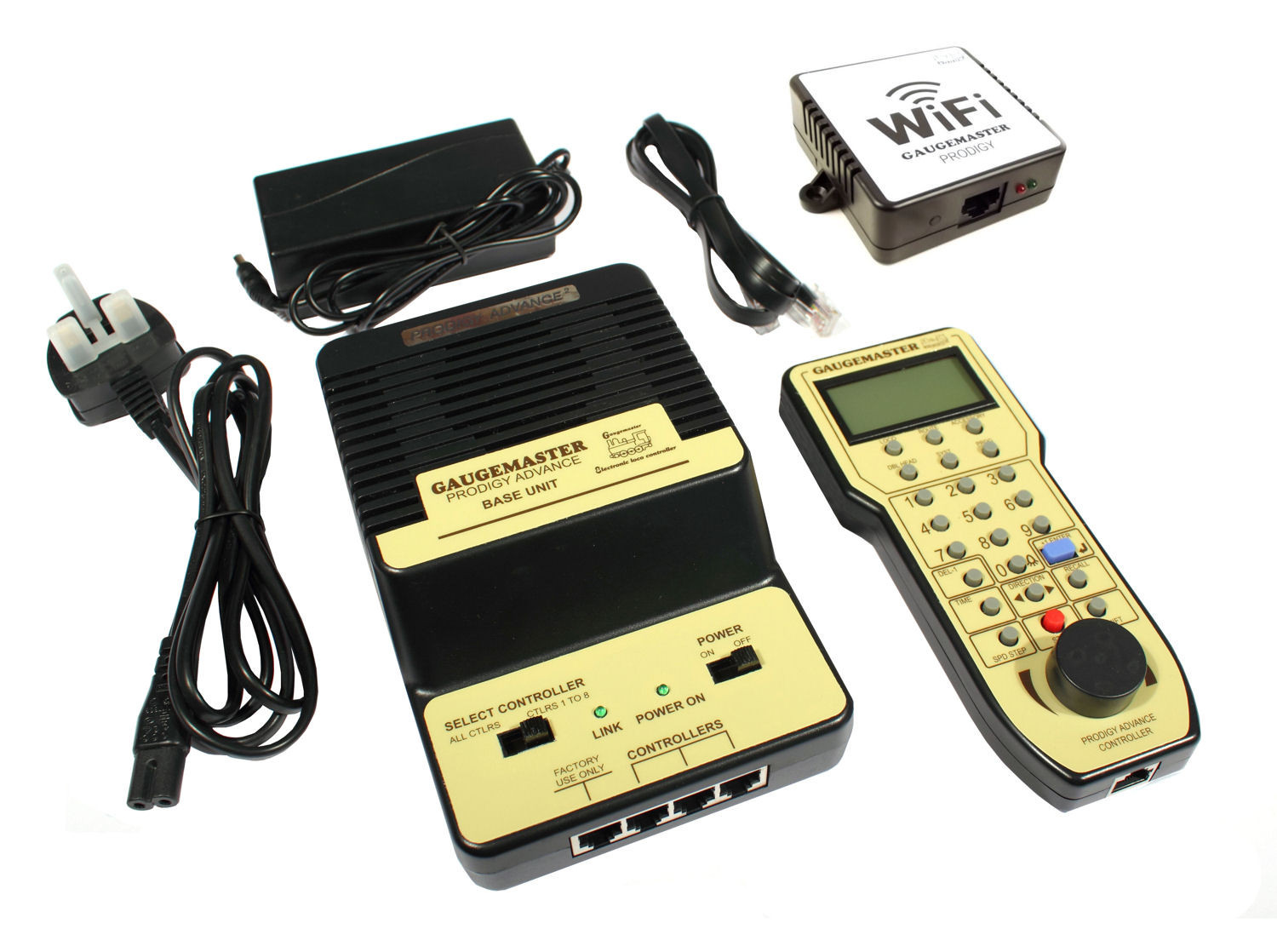

The box contains:
Prodigy Advance ² Unit
Prodigy Wifi Unit
Connection Cables
Power Supply
Mains Plug
Detailed Instructions

Important information:

DCC Track Voltage 15v AC
Current Rating 3.5A
Address Capability 2 and 4 Digit
Speed Steps 14 - 28 - 128
Accessory Functions 1 - 255

Handset Measurements
Length 190mm
Width 80mm
Height 20mm

Base Unit Measurements
Length 180mm
Width 120mm
Height 60mm

Wifi Unit Measurements
Length 65mm
Width 65mm
Height 25mm
Cable Length 1m

Other Unit Measurements
Mains Cable Length 1m
Flat Cable Length 1m
